Ducati 1098 1198 848 Stainless Steel Fairing Bolts Clips Wellnut + Dzus Fasteners Option

This kit will fit Ducati 848, 1098 and 1198 models from 2007 to 2012.

This kit will replace the bolts securing the upper and lower main fairings, rear fairings as well as the front screen to the nose cone. This kit also includes 26 new fairing Wellnuts and 14 spire clips that are worth replacing whilst the fairings are off.

This kit features high quality Stainless Steel button flange head bolts with a head diameter of 12mm (m5). These bolts are Stainless Steel which are better than standard zinc plated bolts as they won't rust and have a shine that lasts for years.

These are not Ducati bolts, they are bolts we have had made from Stainless Steel to replace/upgrade the standard Ducati bolts. They have a similar head shape, thread diameter and thread length dimensions to the standard bolts so will look like original bolts but remain rust-free for a lot longer. Different sized bolts are packaged separately in groups to make it easy for you to replace each standard bolt with the corresponding Stainless Steel bolt from Speedy Fasteners.

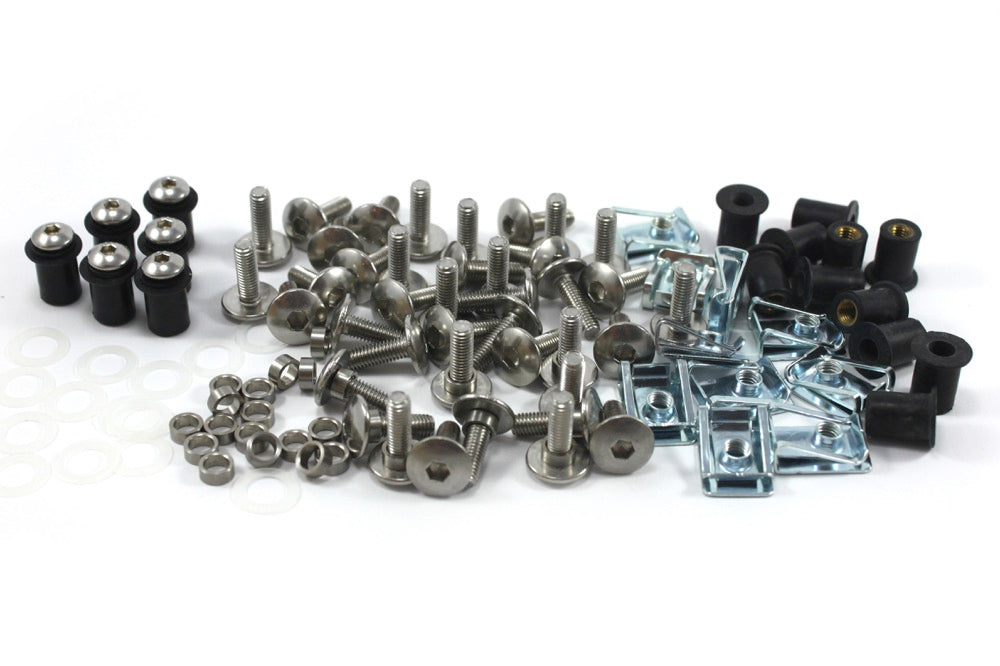

Included in this 147 piece bolt (no Dzus) kit are

34 Well Nuts

17 Spire Clips

48 Stainless Steel Bolts

48 nylon washers

Stainless Collars /Spacers

We also have the option to have Dzus Fasteners. These are small 4mm diameter Dzus Fasteners. You can combine bolts and 13x Dzus in a kit, or just Dzus Fasteners. Please see the diagram and choose how many Dzus you want.

13 Piece Kit - 5 fixings both sides at the top of the fairing (blue arrows) and also 3 fixings underneath on the belly pan (green arrows). The 4 fixings joining the two fairing sections on each side remain in place. This allows each side to be removed as a whole. Please note we now supply 6mm Dzus for the 2 fixings each side that have a larger hole in the fairing.

17 Piece Kit - This kit will replace 7 fixings on each side and 3 on the belly pan, to enable rapid fairing removal. The 4 bolts and well nuts that hold the upper and lower fairings remain. Please note we now supply 6mm Dzus for the 2 fixings each side that have a larger hole in the fairing.

18 Piece Kit - Blue and Yellow fixings. Please note we now supply 6mm Dzus for the 2 fixings each side that have a larger hole in the fairing.

21 Piece Kit - Replaces all fixings in diagram (blue, yellow and green arrows). Upper and lower fairings can be removed seperately. Please note we now supply 6mm Dzus for the 2 fixings each side that have a larger hole in the fairing.

Requires no modifications to your fairings or frame.

These 4mm diameter Dzus studs are perfect to fit through the frame of your Ducati as the larger more common 6mm studs are too big and require the frame to be drilled out!

These Dzus studs are Silver zinc plated and they look fantastic!

This kit is made of high quality products at low prices. If bought from Ducati these parts will cost you $3.71 per bolt and $6.88 for 1x well nut.
