Dzus Fasteners Ducati D-Ring Bail Handle Silver Zinc Panex Studs Small 4mm (No Receptacle)
€2,91
inkl. MwSt.
Versand wird beim Checkout berechnet
In stock!
These are GENUINE DZUS FASTENERS bought from Southco in the UK.

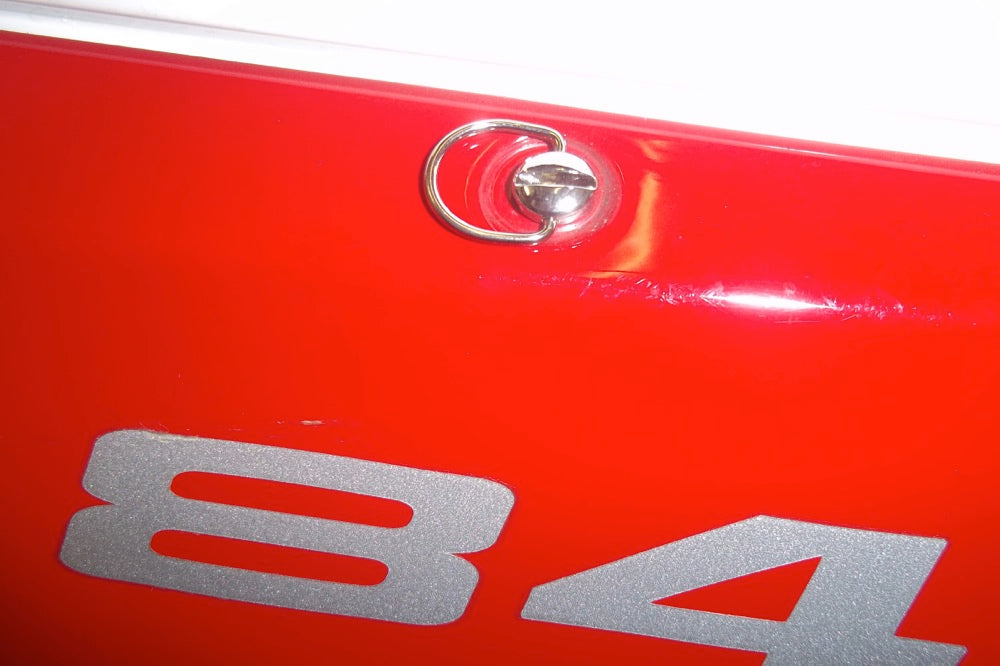

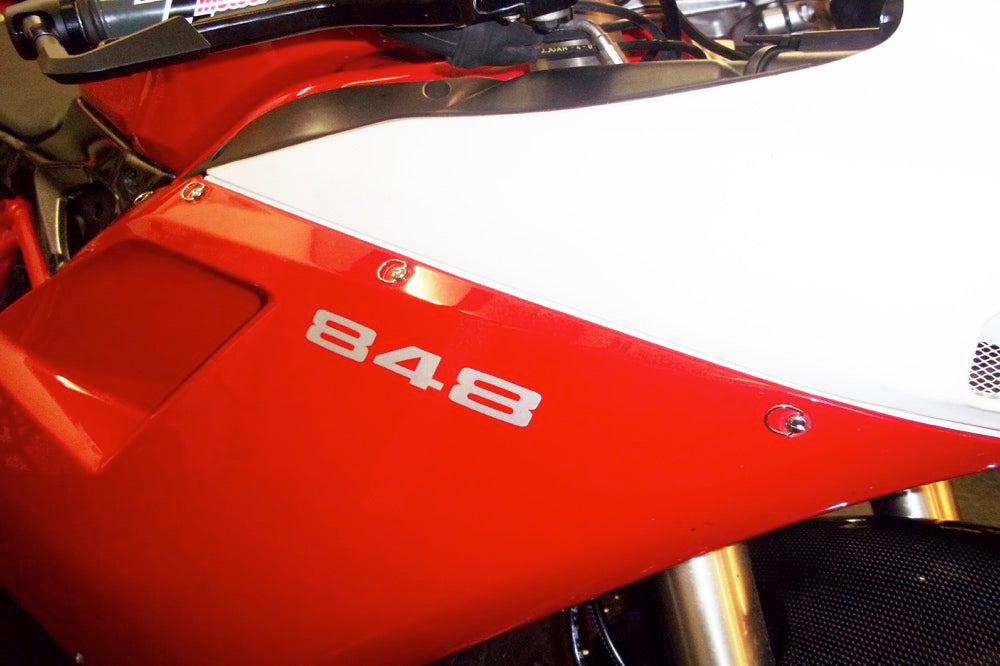

THESE ARE SMALLER THAN STANDARD 6MM STUDS. PLEASE GO BACK AND SELECT THE 6MM STUDS IF YOU WANT STANDARD SIZE DZUS USED ON MOST FAIRINGS. WE ONLY USE THESE ON THE DUCATI 1098, 848 & 1198 AS THEY PASS THROUGH THE FRAME WITHOUT THE NEED TO DRILL IT OUT.

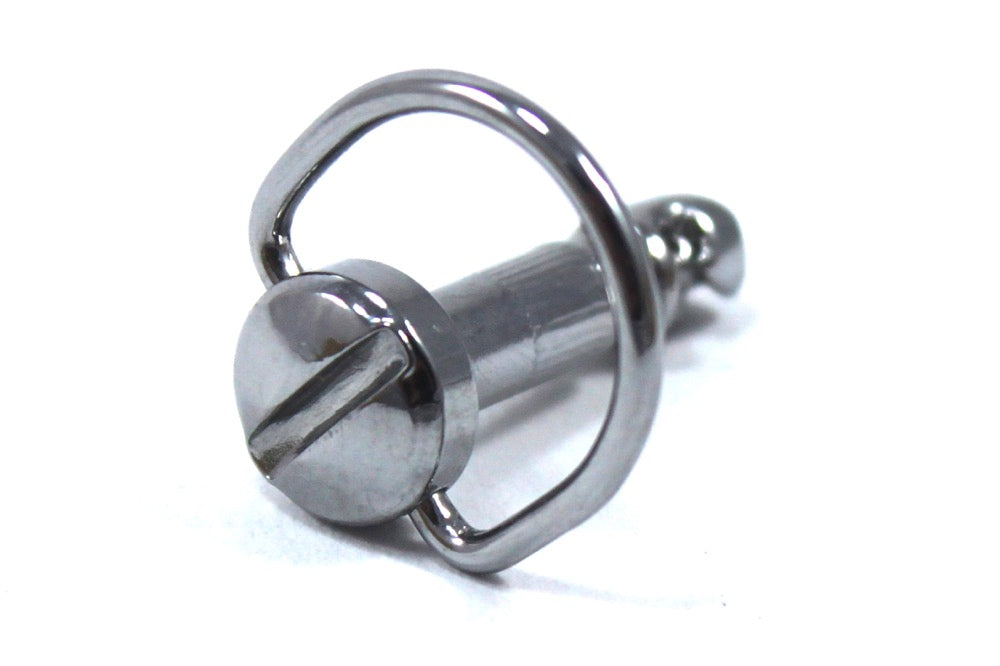

These Dzus studs are 4.35mm in diameter at the widest part of the shaft (locking spiral at the end) and 4mm along the main shaft. They have an D-Ring Handle and slot in the top of the head.
These studs are 15.5mm long from under the head.
Each kit contains:
1x Dzus Quarter Turn Fastener
1x Clear Nylon Washer
1x Black Retaining Washer
The sizes below are the total of both panels, one panel with the clip attached and the panel you are fastening to it. Please account also for any gaps or brackets between the two panels. We supply 2 washers that are 0.5mm thick each, so this accounts for 1mm.
If you don't have Dzus quick release studs or want more quick release fasteners to replace standard bolts, these are easily installed in minutes and save a great deal of time and hassle when removing your fairings. These are essential for race fairings. These are GENUINE Dzus Fasteners and are guaranteed to be of the highest quality! These are 100% genuine Dzus, made to the high standards required by aviation, GP & F1. If you see any cheaper kits they are most likely replicas made cheaply in China, don't take the risk! We have good links with the suppliers of Dzus products in the UK and can source any style, colour or length you need, just send us a message for prices and lead times.
